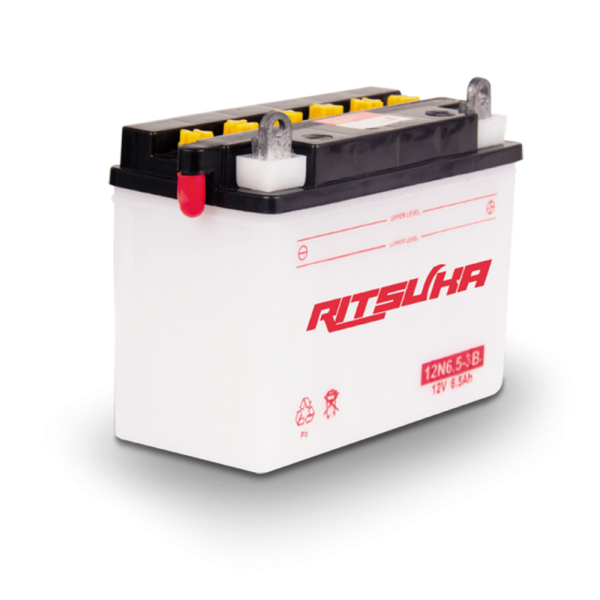

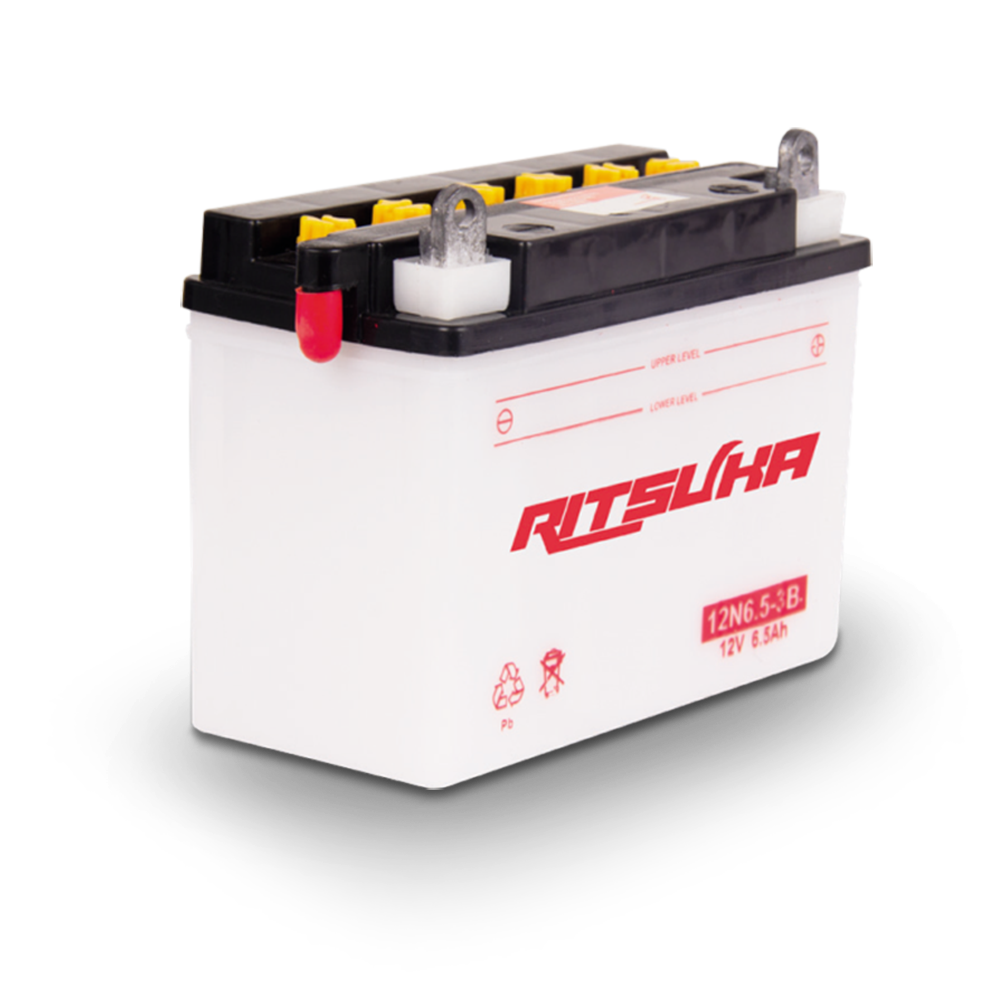

Dry Charge

We offer vast range of Dry Charge Batteries or Conventional Batteries. Our Batteries are designed to have filler caps and vent tubes. Not all vehicles require SMF batteries and Dry Charge/Conventional Batteries offer good performance and longevity but at a lower price point.
Important aspects of the our battery include sealed posts to resist corrosion, tough polypropylene covers, containers and heat sealed construction for a strong, bonded unit. In addition, design features include special separators and through-partition construction.
Our batteries have more cranking power (up to 30%) for their physical size than other standard Conventional battery. The plate surface area in the battery is increased by the use of thin, high-tech separators that make room for extra plates within each cell.
Category:

Features

  • 20% – 30% more starting power than conventional batteries
  • More plates per cell
  • High cranking under different climatic conditions
  • Anti Sulfation Protection given for consistent performance
  • Battery Containers designed for ultra-low vibrations, high durability and longer service life
  • Low self-discharge means longer ideal life even after adding electrolyte

DC Battery Range

S.no. Model Terminal Voltage(V) Capacity(Ah) L(mm) W(mm) H(mm)
1 6N4-2A DC ,- 6 4 71 71 96
2 6N4-2A-2 DC ,- 6 4 71 71 96
3 6N4-2A-42 DC ,- 6 4 71 71 96
4 6N4-2A-7 DC ,- 6 4 71 71 96
5 6N6-3B-1 DC -, 6 5 99 57 111
6 6N6-1B-1 DC -, 6 5 99 57 111
7 12N5-3B DC -, 12 4 120 61 130
8 12N5-4B DC ,- 12 4 120 61 130
9 YB5L-B DC-HD -, 12 4 120 61 130
10 12N6-3B DC -, 12 6 137 72 95
11 YB6L-B DC-HD -, 12 6 137 72 95
12 12N6.5-3B DC -, 12 6.5 138 73 107
13 YB6.5L-B DC-HD -, 12 6.5 138 73 107
14 12N7A-3A DC -, 12 7 150 60 130
15 12N7B-3A DC -, 12 7 150 60 130
16 12N7A-4A DC ,- 12 7 150 60 130
17 12N7B-4A DC ,- 12 7 150 60 130
18 YB7B-B DC-HD ,- 12 7 150 60 130
19 12N7-3A DC -, 12 7 135 75 133
20 12N7-3B DC -, 12 7 135 75 133
21 12N7-4A DC ,- 12 7 135 75 133
22 12N7-4B DC ,- 12 7 135 75 133
23 YB7L-B DC-HD ,- 12 7 135 75 133
24 12N9-3A DC -, 12 9 135 75 139
25 12N9-3B DC -, 12 9 135 75 139
26 12N9-3B DC ,- 12 9 135 75 139
27 12N9-4B-1 DC ,- 12 9 135 75 139
28 YB9-B DC-HD ,- 12 9 135 75 139
29 12N10-3B DC -, 12 10 134 90 145
30 12N10-3B-1 DC -, 12 10 134 90 145
31 YB10L-B1 DC-HD -, 12 10 134 90 145
32 12N12A-4A-1 DC ,- 12 10 136 76 160
33 YB12A-A DC-HD ,- 12 12 134 76 160
34 YB12AL-A DC-HD -, 12 12 134 76 160
35 12N14-3A DC -, 12 12 136 90 164
36 12N14-3B DC -, 12 12 136 90 164
37 YB14-A2 DC-HD ,- 12 12 136 90 164
38 YB14L-A2 DC-HD -, 12 12 136 90 164
39 51913 DC -, 12 19 185 82 170
40 YB2.5L-C DC-HD -, 12 2.5 80 70 105
41 YB2.5L-C2 DC-HD -, 12 2.5 80 70 105
42 12N3-3A DC -, 12 3 98 56 110
43 YB3L-A DC-HD -, 12 3 98 56 110
44 YB3L-B DC-HD -, 12 3 98 56 110
45 YB3L-C DC-HD -, 12 3 98 56 110
46 YB4L-B DC-HD -, 12 4 120 70 92
47 YB16-B DC-HD ,- 12 16 175 100 155
48 YB16L-B DC-HD -, 12 16 175 100 155
49 12N16-3B DC -, 12 16 175 100 155
50 12N16-4B DC-HD ,- 12 16 175 100 155
51 YB16AL-A2 DC-HD -, 12 16 205 70 162
52 B38-6A DC-HD -, 6 13 119 83 161

Battery Charger

A patented product by Eastman.
Eastman’s Automatic 12V 1.5 Amp Battery Charger incorporates superior 9-stage charging technology with 10-port charge. This high power unit provides error proof operation to fully charge sealed maintenance free and conventional or dry charge batteries. Controlled by a microprocessor chip, the charger detects the charging mode required to charge the battery. The Chip monitors the state of the battery charge and begins charging automatically when the battery charge drops to a specific voltage.

Below are a few features of this Automatic 12V 1.5 Amp battery charger:

  • Designed to prevent overcharging
  • AC power LED indicator
  • Reverse polarity protection
  • Spark-free operation
  • 10 ports to charge many batteries at once
  • Intelligent charger, controlled by microprocessor chip
  • Automatic cut to avoid overload
  • Load completion indicator
  • Defective battery indicator
  • Battery accessory leads and fused ring connectors included

TECHNICAL SPECIFICATION

  • Model -ET 10x2A
  • Input – 100- 240VAC 50/60Hz
  • Input cable – 2m / 0.75mm2
  • Output – 12VDC 2APer Channel
  • Maximum load current: 2 amps – 2A
  • Maximumvoltage – 14.4 + 0.2V
  • Output cable – 10 X 0.1 / 18AWG
  • Clamp cable length /AWG – 10×1.8 / 18AWG

How to charge a battery

Sealed Battery Charging Procedure:

Given below are a few instructions to follow:

  1. Connect cablesto the battery terminals before turning on the charger, red cable goesto positive (+) terminal and black to negative terminal (-)
  2. Gel batteries or SMF batteries should never be charged at more than 14.4V as it can damage the battery
  3. Initially go for low amperage when charging or look at instructions provided with the battery to charge at a specific amperage
  4. Load test the battery at 3 times its ampere hour rating for 15 secs or use and automatic battery tester to determine the battery condition and then check the voltage
  5. Voltage should be minimum 12.4V on a 12V battery
  6. Battery is then ready to be fitted
  7. If the voltage reading is below 12.4V or the battery fails the automatic battery test, repeat the charging and test cycle

Dry Charge/Conventional Battery Charging Procedure

  • Place it on a level surface
  • Remove the yellow filler caps, placing them safely on one side
  • Remove the sealing cap from the vent, never replace this after the battery has been filled with electrolyte as it may cause the battery to rupture
  • Fill each cell with electrolyte to the fill level as indicated on the battery case (Always wear protective eyewear and gloves when working with electrolytes)
  • The electolyte should have a specific gravity of 1.265 and be between 62-86F
  • Leave the battery for a minimum of 30 minutes and gently tap occasionally on the case to remove any bubbles trapped between the plates
  • If after 30 minutes the electrolyte level has fallen, fill it to the upper fill levels as indicated on the battery case
  • Repplace the filler caps loosely and begin to change the battery at 1/10 of its rated capacity for 3-5 hours. charging at higher rate could damage the battery
  • Do not connect or disconnect the battery while the charger is switched on as this may cause sparks that could ignite the hydrogen gas emitted from the cells during charging
  • Monitor the electrolyte level during charging and top up the fill line as necessary
  • When charging is complete, turn off the charger and disconnect it from the battery
  • Push or screw down the yellow filler caps. Make sure not to over-tighten them.
  • Clean off any spilled electrolyte with water and baking soda solution
  • Allow the battery to stand of atleast 30 minutes
  • Load test the battery at 3 times its ampere hour rating for 15 seconds or use an automatic battery tester to determine the battery condition and then check the voltage
  • Voltage should be minimum 12.4v on a 12v battery

Technical Features

  1. Sealed Construction
    The unique construction and sealing technique ensures no electrolyte leakage from case or terminals.
  2. Electrolyte Suspension System
    All batteries utilize RITSUKA’s unique electrolyte suspension sysytem incorporating a microfine glass mat to retain the maximum amount of electrolyte in the cells. The electrolyte is retained in the separator material and there is no free electrolyte to escape from the cells. No gels or other contaminants are added.
  3. Recombination Technology
    The design of RITSUKA’s batteries incorporates the very latest oxygen recombination technology to effectively eliminate the need for watering during normal use.
  4. Low Maintenance Operation
    Due to the perfectly sealed construction and the recombination of gasses within the cell,the battery is almost maintenance free
  5. Terminals
    Batteries are manufactured using a range of terminals which vary in size and type. Please refer to
    details as shown below:

Terminal Configurations

Terminal shapes vary from one battery to another. By identifying the correct replacement battery from the listing in this book, you are assured of the proper terminal configuration.

Battery Safety

Batteries can be dangerous, so you have to make sure that some simple safety precautions are always followed. Working with batteries poses two hazards: potentially explosive gases that are given off during charging, and sulfuric acid that are very corrosive.
Here’s an 8-point list that’ll help keep those hazards under control:

  1. Absolutely no smoking, sparks or open flames around batteries. Batteries can produce hydrogen and oxygen; if they ignite the battery can rupture.
  2. On conventional batteries, loosen vent caps when charging and ventilate the entire charging area.
  3. A build-up of hydrogen and oxygen levels in the battery or in the room where it’s being charged
    can create a hazard.
  4. If a battery feels hot to touch during charging, stop charging and allow it to cool before resuming.
  5. Heat damages the plates, and a battery that’s too hot can rupture.
  6. Never put the red sealing cap back on the battery once you take it off.If you do, gases trapped inside can explode. Make sure the vent tube isn’t kinked or blocked, for the same reason.
  7. Connect the charger to battery properly: positive to positive, negative to negative. Unplug the charger or turn it off before you disconnect the lead

Points To Remember

  • Ventilate battery charging area.
  • Charging gives off gases – no smoking, sparks or flames
  • Safety glasses or face shields protect against eye damage
  • Acid swallowed or in the eyes requires immediate antidotes and medical care.
  • All safety considerations are important… review them frequently

Battery Testing Devices

How much of a change does a battery have? There are two easy and reliable ways to find out:

  • A hydrometer, which comes in floating ball and calibrated float types
  • A voltmeter (or multimeter, which gived DC voltage Readings)

Which is the best?

If you’re choosing between two hydrometers, opt for the calibrated float type. It gives you an exact specific gravity reading(that is, the density of the electrolyte compared to water), that’s much more accurate than floating balls. A voltmeter or multimeter can be used where a hydrometer can’t. MostsealedVRLA or low maintenance batteries have to be tested witha voltmeter.
Battery testing requires a voltmeter that can measure DC voltage. Remember to always connect a voltmeter parallel to
the circuit being tested, observing polarity; otherwise, the pointer will travel in the wrong direction. It’s a good idea to
periodically check a voltmeter against another one of known accuracy

Battery Testing

There are two types of battery tests: Unloaded and Loaded. An Unloaded Test is made on a battery without discharging current. It’ssimplest and most commonly used. And if you need a precise reading, Loaded testing is the answer. It’s more accurate.

Unloaded Testing

Check charge condition using either a hydrometer or voltmeter. With a voltmeter, voltage readings appear instantly to show the state of charge. Remember to hook the positive lead to the battery’s positive terminal, and the negative lead to the negative terminal.
A hydrometer measures the specific gravity of each cell. The specific gravity tells the degree of charge; generally, a specific gravity of about 1.265 to 1.280 indicates a full charge. A reading of 1.230 to 1.260 indicates the battery should be charged before testing. The chart below shows the charge level as measured by syringe float hydrometer, digital voltmeter and five ball hydrometer.

Methods of Checking Battery Condition

State of Charge Syringe Hydrometer Digital Voltmeter 5-Ball Hydrometer
100% Charged
w/Sulfate Stop		 1.280 12.80v 5 Balls Floating
100% Charged 1.265 12.60v 4 Balls Floating
75% Charged 1.210 12.40v 3 Balls Floating
50% Charged 1.160 12.10v 2 Balls Floating
25% Charged 1.120 11.90v 1 Balls Floating
0% Charged less than 1.100 less than 11.80v 0 Balls Floating
