RITSUKA parts - Motorcycle spokes and nipples
RITSUKA parts - Motorcycle spokes and nipples

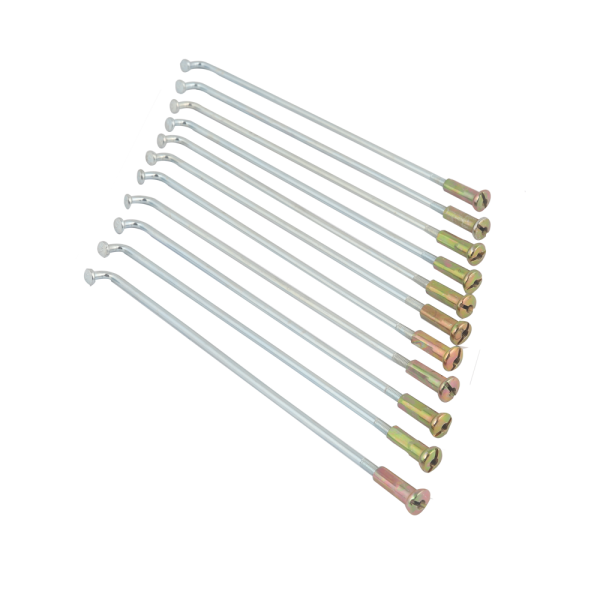

Spokes and Nipples

We specialize in making high performance spokes and nipples for both amateur and professional use. With fatiguetesting regularly giving them the highest possible marks, their unique strength and flexibility make themubiquitous in high-end road wheels.

Features

  • Manufactured from high tensile,fatigue resistant stainless steel
  • Light weight
  • Corrosion resistant
  • Ultra-light
  • Good residual strength
  • High load carrying capacity
  • Torsion free spoke
  • Four grade plating
Category:

Raw Material

Our spokes are manufactured of high-grade steel-C1045. C1045 steel can with stand tremendous amount of weights and pressure.
They have qualities like:

  • High grade raw material
  • Precise dimension
  • Smooth surface finish
  • High durability and strength
  • Stringent quality control
S.no. Parameter Details RITSUKA Chinese Product RITSUKA Advantage
1 Raw material C-1045 steel High grade C-1045 steel Substandard C-1045 steel 1)Resistance to corrosion
2) High strength

Chemical Composition

Grade C (%) min.-max. Si (%) min.-max. Mn (%) min.-max. P (%) max. S (%) max.
C1045 0.43~0.50 0.10~0.35 0.6~0.9 0.040 0.050

Salient features of C1045 include:

  • Robust construction
  • Resistance to corrosion
  • High strength
  • Good weld ability

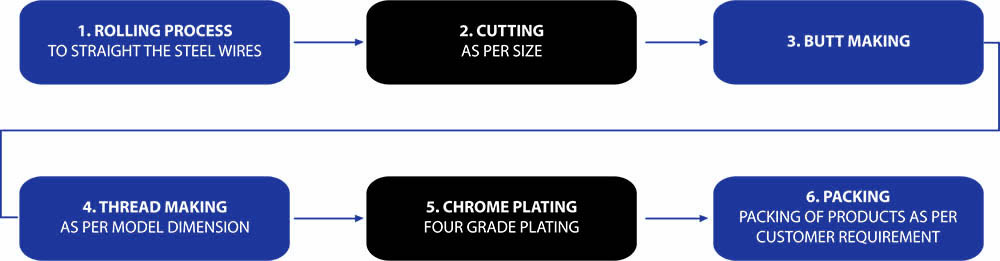

Manufacturing

Each product is manufactured with extreme perfection.

S.no. Parameter Details RITSUKA Chinese Product RITSUKA Advantage
1 Manufacturing as per GB standard Rolling process Inhouse steel wire straightening machine Outsourced Inhouse manufacturing ensures better quality control on produced parts
Cutting process Inhouse steel wire cutting machine Inhouse Inhouse manufacturing ensures better quality control on produced parts
Butt making Inhouse butt making machine Outsourced Inhouse manufacturing ensures better quality control on produced parts
Thread making Inhouse Inhouse Inhouse manufacturing ensures better quality control on produced parts
Chrome plating 4-grade plating with inhouse facility Outsourced Inhouse manufacturing ensures better quality control on produced parts

Testing

Each of our spokes is further tested on international standards.

S.no. Parameter Details RITSUKA Chinese Product RITSUKA Advantage
1 Testing Standard Incoming Quality Inspection 100% inspection of incoming raw material No testing This ensures that incoming parts are within tolerance limit
In process 100% quality check at different processes to check the dimension and shape No quality check, since it requires extra manpower/extra cost This ensure the produced parts is within tolerance limit
Final inspection All the products are checked before dispatch to ensure good quality No quality check, since it requires extra manpower/extra cost Defect free product to customer.

Salt Spray Test

This test is performed to check the corrosion resistance.

S.no. Parameter Details RITSUKA Chinese Product RITSUKA Advantage
1 Testing Standard Salt spray test To check the corrosion resistance No testing 1) Ensure better quality.
2) Corrosion resistance

Dimensional Test

This test is performed to check the corrosion resistance.

S.no. Parameter Details RITSUKA Chinese Product RITSUKA Advantage
1 Testing Standard Dimensional test Inhouse dimension checking by QC dep’t. Random checking 1) Ensures proper dimension stability
